Introduction to WebGPU from Python#
The webgpu package wraps the WebGPU API in a small rendering framework so you can write interactive GPU graphics directly from Python / Jupyter.
Useful links
Check browser support: https://webgpureport.org/
WGSL language tour: https://google.github.io/tour-of-wgsl/
WebGPU specification: https://www.w3.org/TR/webgpu/

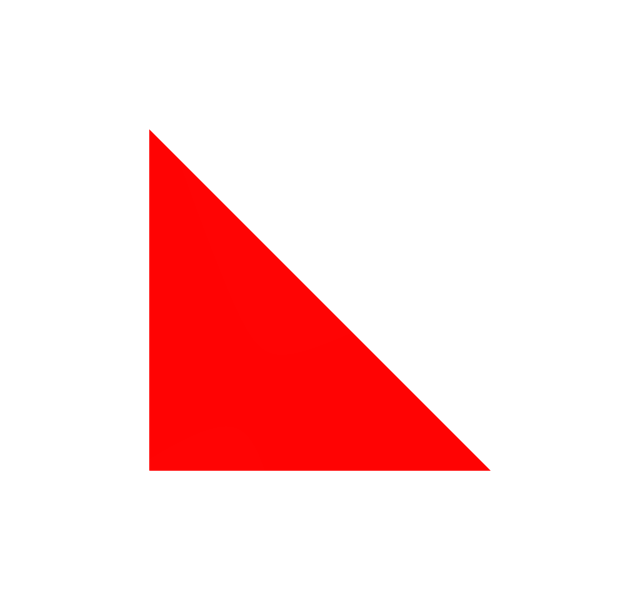

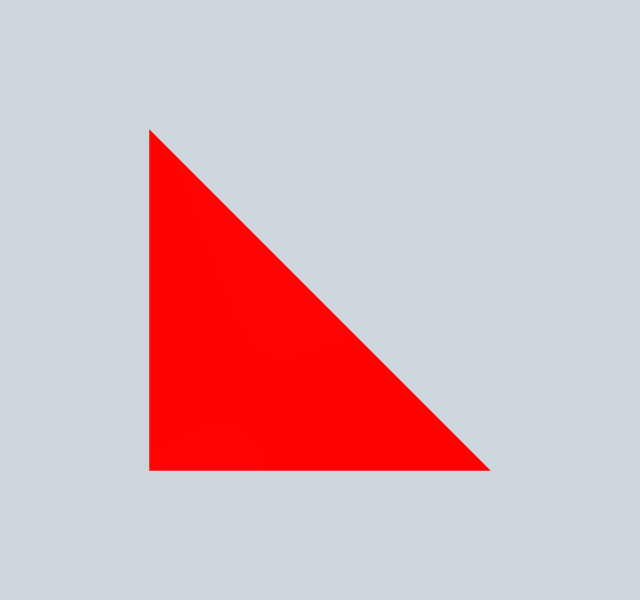

First example#
The package ships renderer classes for common geometry. Draw creates a WebGPU canvas and renders everything you pass to it.
[1]:
from webgpu.jupyter import Draw
from webgpu.triangles import TriangulationRenderer
points = [(0, 0, 0), (0, 1, 0), (1, 0, 0)]
Draw(TriangulationRenderer(points, color=(1, 0, 0, 1)))
[1]:
Core concepts#
Concept |
Role |
|---|---|
Renderer |
Owns shader code, vertex data, and GPU bindings |
Scene |
Holds one or more renderers plus a Camera and Light |
Draw |
Creates a Scene, attaches a Canvas, and displays it |
Camera, light, and canvas are set up automatically by Draw. You only need to provide Renderer objects.

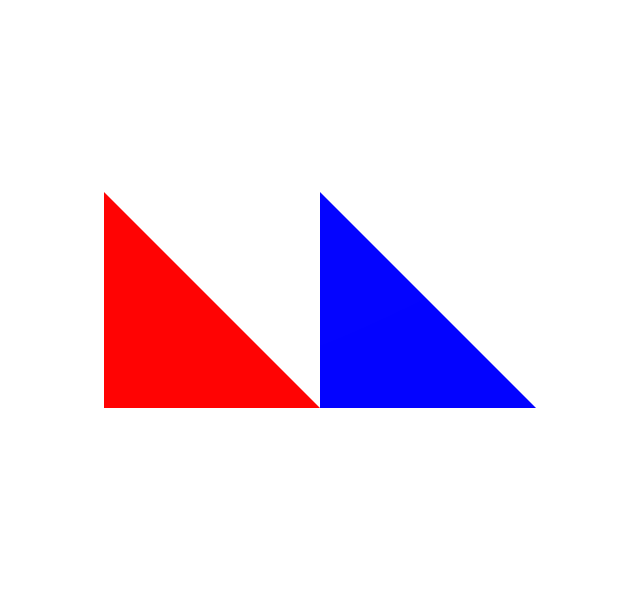

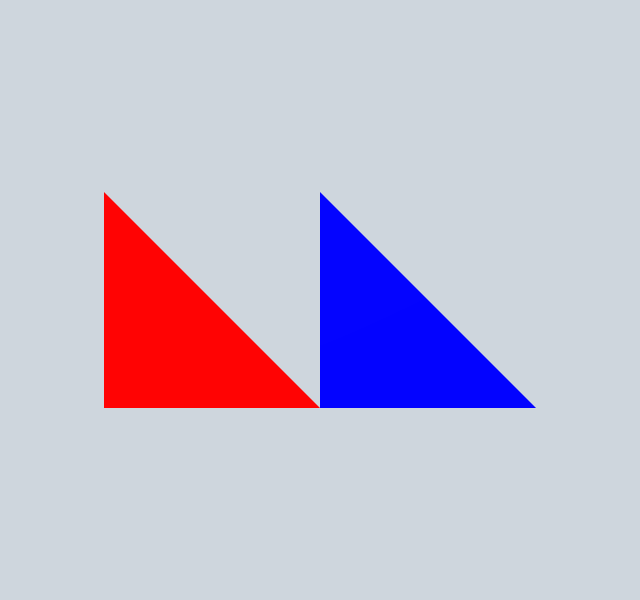

Multiple renderers in one scene#
Pass a list to Draw to compose several renderers into one scene.
[2]:
from webgpu.jupyter import Draw
from webgpu.triangles import TriangulationRenderer
tri1 = TriangulationRenderer([(0, 0, 0), (0, 1, 0), (1, 0, 0)], color=(1, 0, 0, 1))
tri2 = TriangulationRenderer([(1, 0, 0), (1, 1, 0), (2, 0, 0)], color=(0, 0, 1, 1))
Draw([tri1, tri2])
[2]:
