Quickstart

ngsolve_webgpu.jupyter.Draw is the high-level entry point. It mirrors the NGSolve webgui Draw and dispatches on the type of its first argument:

• a Mesh → renders surface elements + wireframe

• a CoefficientFunction (with a Mesh) → renders coloured field with colormap and colorbar

• an OCC OCCGeometry / TopoDS_Shape → renders the geometry with face/edge colours

Every canvas below is fully interactive — drag to rotate, shift-drag to pan, scroll to zoom, and use the GUI panel in the top-right corner.

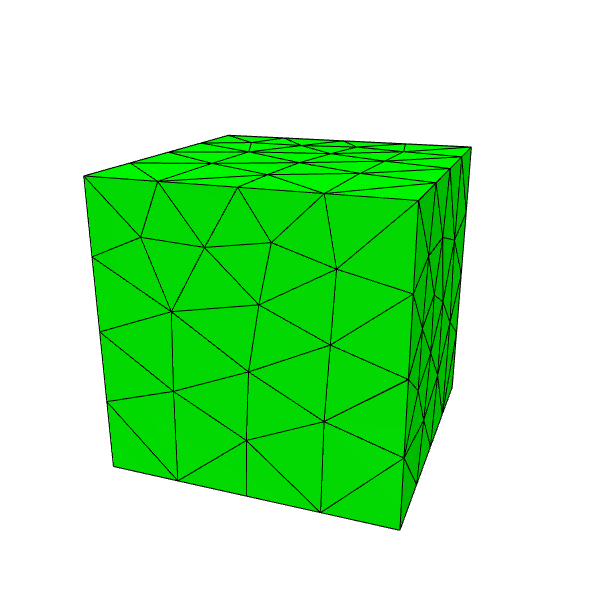

A 3D mesh

from ngsolve import *
from ngsolve_webgpu.jupyter import Draw

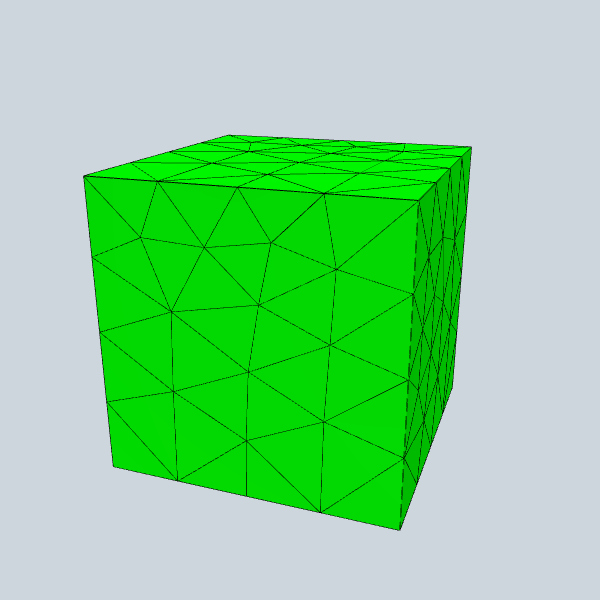

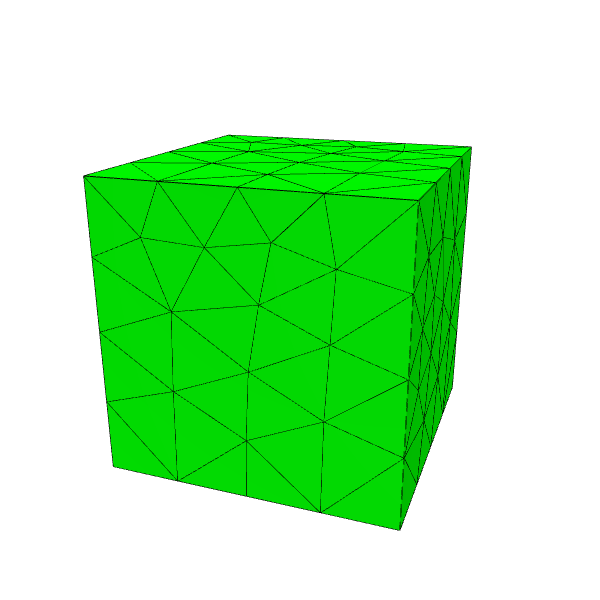

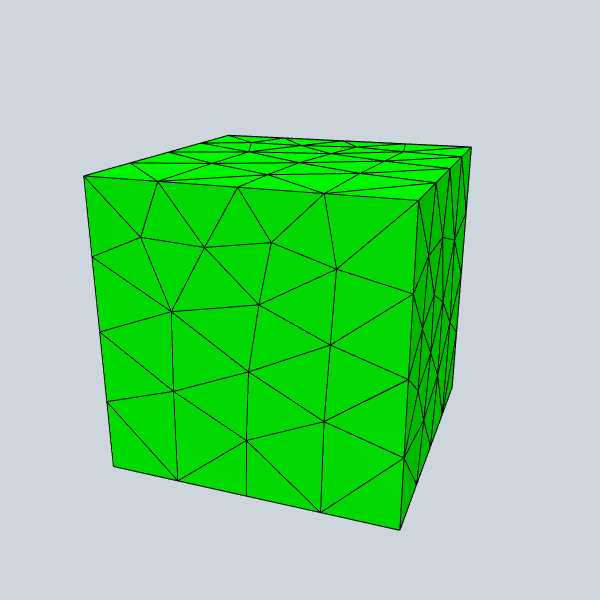

mesh = Mesh(unit_cube.GenerateMesh(maxh=0.25))
Draw(mesh)

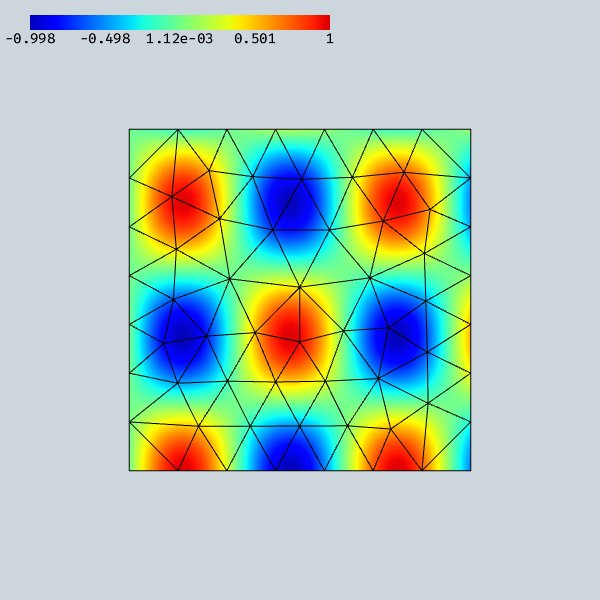

A coefficient function on a 2D mesh

The order keyword controls the per-element subdivision used to render high-order data.

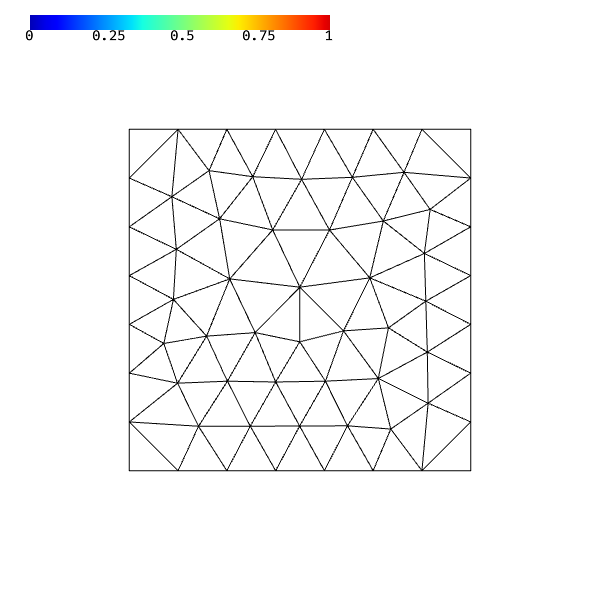

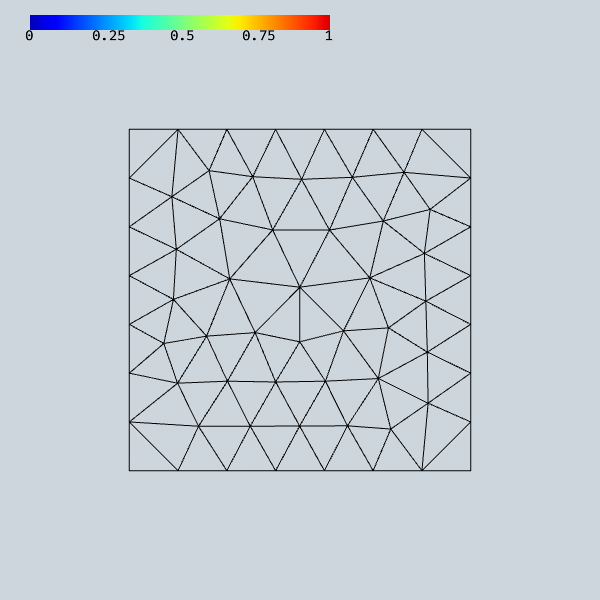

mesh = Mesh(unit_square.GenerateMesh(maxh=0.15))

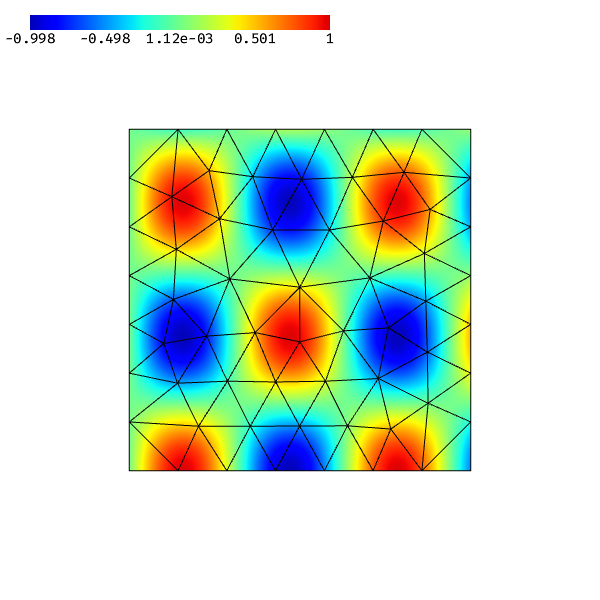

Draw(sin(10 * x) * cos(8 * y), mesh, order=4)

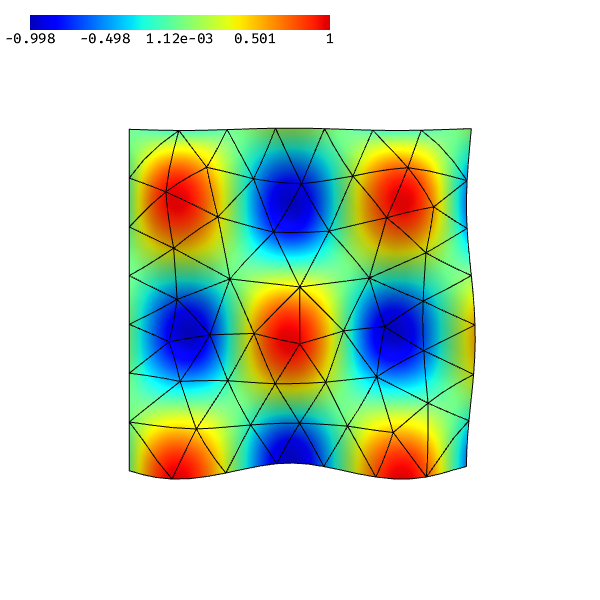

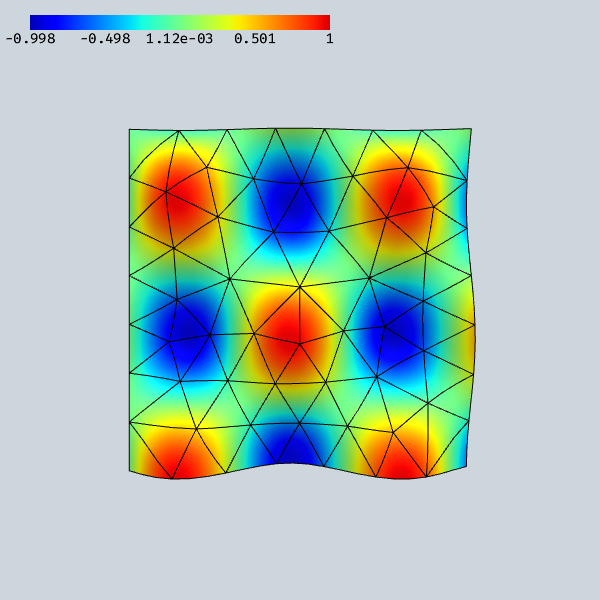

Deformation

The deformation keyword applies a vector-valued CF as a per-vertex displacement — handy to lift a 2D scalar field into 3D or to visualise an elasticity solution.

mesh = Mesh(unit_square.GenerateMesh(maxh=0.15))
f = sin(10 * x) * cos(8 * y)
deformation = CF((0, 0, 0.1 * f))
Draw(f, mesh, deformation=deformation, order=4)

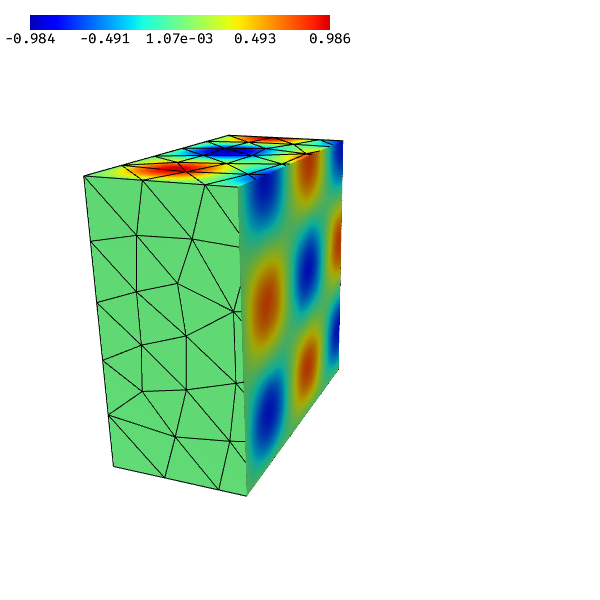

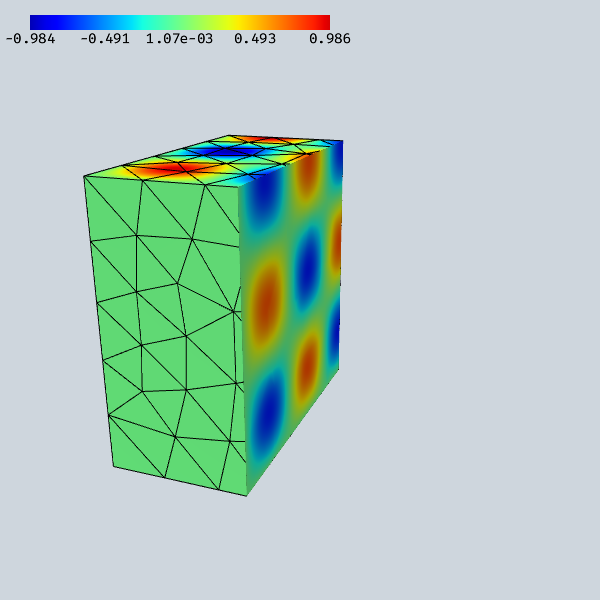

Clipping a 3D field

For 3D meshes Draw automatically wires up a clipping-plane GUI. Pass clipping=True to enable it on load, or a dict to set the initial normal/centre.

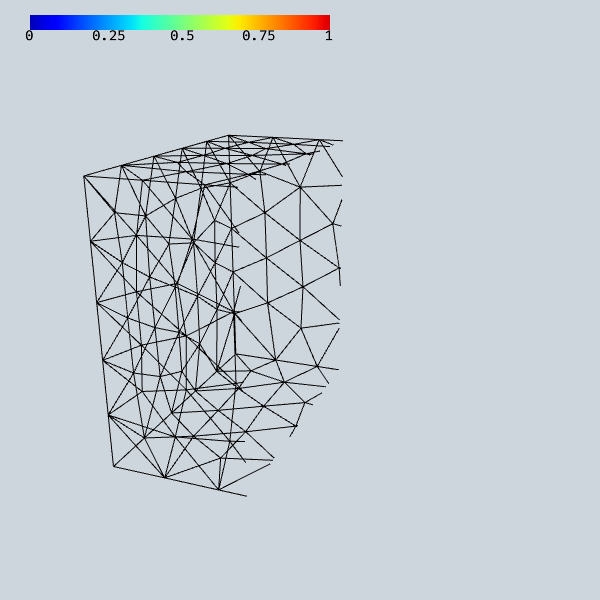

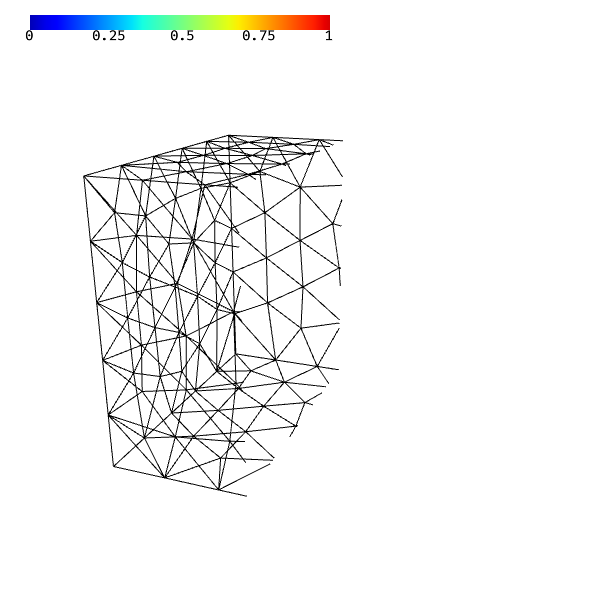

mesh = Mesh(unit_cube.GenerateMesh(maxh=0.2))
Draw(sin(8 * x) * sin(8 * y) * sin(8 * z), mesh, order=3,
     clipping={"nx": 1, "ny": 0, "nz": 0})

Common keyword arguments

Argument	Effect
order	Per-element subdivision for the CF renderer (default 2).
deformation	Vector CF applied as a displacement to mesh vertices.
clipping	True/False or a dict {enabled, nx, ny, nz, x, y, z}.
vectors	True or option dict — overlays a vector-glyph layer (2D only).
width, height	Canvas size in CSS pixels.
subdivision	Override the mesh subdivision used during sampling.

Draw returns a Scene object; its .gui attribute lets you append custom controls (sliders, checkboxes), and .redraw() re-renders after Python-side changes (parameter updates, GridFunction edits). The remaining sections show how to compose your own scenes from the individual renderer classes when Draw isn’t enough.
